Output Class Reference

The Output class abstracts output data (database, textbased, ...). More...

#include <output.h>

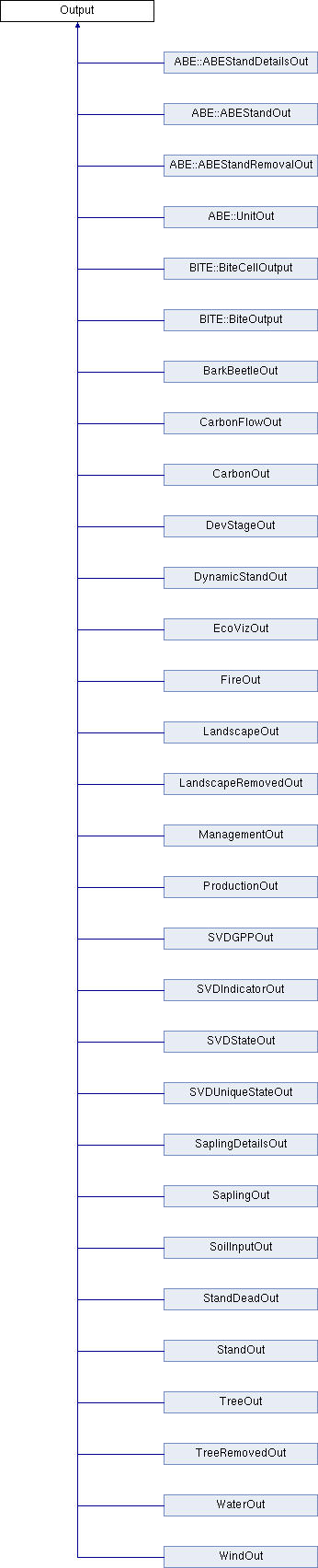

Inheritance diagram for Output:

Public Member Functions
	Output ()
	ctor. Override in derived class to craete columns, etc. More...
virtual	~Output ()
virtual void	setup ()
	setup() is called during project setup and can be ovveridden for specific setup More...
void	setMode (OutputMode mode)
void	open ()
	open output connection (create actual db connection, ...) More...
bool	isOpen () const
	returns true if output is open, i.e. has a open database connection More...
void	close ()
	shut down the connection. More...
bool	isEnabled () const
	returns true if output is enabled, i.e. is "turned on" More...
void	setEnabled (const bool enabled)
bool	isRowEmpty () const
	returns true if the buffer of the current row is empty More...
virtual void	exec ()
	main function that executes the output More...
const QList< OutputColumn >	getColumns () const
const QString	name () const
	descriptive name of the ouptut More...
const QString	description () const
	description of output More...
const QString	tableName () const
	internal output name (no spaces allowed) More...
QString	wikiFormat () const
	return output description in a (tiki)-wiki format More...
Output &	operator<< (const double &value)
Output &	operator<< (const int value)
Output &	operator<< (const QString &value)

Protected Member Functions
void	setName (const QString &name, const QString tableName)
void	setDescription (const QString &description)
QList< OutputColumn > &	columns ()
int	currentYear () const
const XmlHelper &	settings () const
	access XML settings (see class description) More...
void	writeRow ()
	saves the current row/line of data to database/file. Must be called for each row. More...
void	singleThreadedWriteRow ()
	writeRow() protected by a mutex (if there is a chance that two outputs write at the same time) More...
void	add (const double &value)
void	add (const double &value1, const double &value2)
void	add (const double &value1, const double &value2, const double &value3)
void	add (const double &value1, const double &value2, const double &value3, const double &value4)
void	add (const double &value1, const double &value2, const double &value3, const double &value4, const double value5)
void	add (const int intValue)
void	add (const QString &stringValue)
bool	clearColumnsAfter (QString find_name)
	delete all columns after the column 'find_name'. Return true if columns were removed. More...
void	truncateTable ()
	delete all data from the table More...

Detailed Description

The Output class abstracts output data (database, textbased, ...).

To create a new output, create a class derived from Output and perform the following steps:

• Overwrite constructor: Create columns and set fixed properties (e.g. table name)
• overwrite setup() this function is called after the project file is read. You can access a XmlHelper calling settings() which is set to the top-node of the output (defined by tableName() which is set in the constructor). Access settings using relative xml-pathes (see example).
• overwrite exec() add data using the stream operators or add() function of Output. Call writeRow() after each row. Each invokation of exec() is a database transaction.
• Add the output to the constructor of OutputManager

Example

// (1) Overwrite constructor and set name, description and columns
TreeOut::TreeOut()
 {
     setName("Tree Output", "tree");
     setDescription("Output of indivdual trees.");
     columns() << OutputColumn("id", "id of the tree", OutInteger)
              << OutputColumn("name", "tree species name", OutString)
              << OutputColumn("v1", "a double value", OutDouble);
  }
 // (2) optionally: some special settings (here: filter)
 void TreeOut::setup()
 {
     QString filter = settings().value(".filter","");
     if (filter!="")
         mFilter = QSharedPointer<Expression>(new Expression(filter));
 }

 // (3) the execution
 void TreeOut::exec()
 {
     AllTreeIterator at(GlobalSettings::instance()->model());
     while (Tree *t=at.next()) {
         if (mFilter && !mFilter->execute()) // skip if filter present
             continue;
         *this << t->id() << t->species()->id() << t->dbh(); // stream operators
         writeRow(); // executes DB insert
     }
 }
 // in outputmanager.cpp:
 OutputManager::OutputManager()
 {
     ...
     mOutputs.append(new TreeOut); // add the output
     ...
 }

Constructor & Destructor Documentation

Output()

Output::Output

(

)

ctor. Override in derived class to craete columns, etc.

~Output()

Output::~Output ( )

virtual

Member Function Documentation

add() [1/7]

void Output::add ( const double &  value )

inlineprotected

add() [2/7]

void Output::add ( const double &  value1, const double &  value2  )

inlineprotected

add() [3/7]

void Output::add ( const double &  value1, const double &  value2, const double &  value3  )

inlineprotected

add() [4/7]

void Output::add ( const double &  value1, const double &  value2, const double &  value3, const double &  value4  )

inlineprotected

add() [5/7]

void Output::add ( const double &  value1, const double &  value2, const double &  value3, const double &  value4, const double  value5  )

inlineprotected

add() [6/7]

void Output::add ( const int  intValue )

inlineprotected

add() [7/7]

void Output::add ( const QString &  stringValue )

inlineprotected

clearColumnsAfter()

bool Output::clearColumnsAfter ( QString  find_name )

protected

delete all columns after the column 'find_name'. Return true if columns were removed.

delete columns that were added after the column 'find_name'

close()

void Output::close

(

)

shut down the connection.

columns()

QList< OutputColumn > & Output::columns ( )

inlineprotected

currentYear()

int Output::currentYear ( ) const

inlineprotected

description()

const QString Output::description ( ) const

inline

description of output

exec()

void Output::exec ( )

virtual

main function that executes the output

Reimplemented in ABE::ABEStandOut, ABE::ABEStandDetailsOut, ABE::ABEStandRemovalOut, ABE::UnitOut, BITE::BiteOutput, BITE::BiteCellOutput, CarbonFlowOut, CarbonOut, DevStageOut, DynamicStandOut, EcoVizOut, LandscapeOut, LandscapeRemovedOut, ManagementOut, ProductionOut, SaplingOut, SaplingDetailsOut, SoilInputOut, StandDeadOut, StandOut, SVDGPPOut, SVDStateOut, SVDUniqueStateOut, SVDIndicatorOut, TreeOut, TreeRemovedOut, WaterOut, BarkBeetleOut, FireOut, and WindOut.

getColumns()

const QList< OutputColumn > Output::getColumns ( ) const

inline

isEnabled()

bool Output::isEnabled ( ) const

inline

returns true if output is enabled, i.e. is "turned on"

isOpen()

bool Output::isOpen ( ) const

inline

returns true if output is open, i.e. has a open database connection

isRowEmpty()

bool Output::isRowEmpty ( ) const

inline

returns true if the buffer of the current row is empty

name()

const QString Output::name ( ) const

inline

descriptive name of the ouptut

open()

void Output::open

(

)

open output connection (create actual db connection, ...)

operator<<() [1/3]

Output & Output::operator<< ( const double &  value )

inline

operator<<() [2/3]

Output & Output::operator<< ( const int  value )

inline

operator<<() [3/3]

Output & Output::operator<< ( const QString &  value )

inline

setDescription()

void Output::setDescription ( const QString &  description )

inlineprotected

setEnabled()

void Output::setEnabled ( const bool  enabled )

inline

setMode()

void Output::setMode ( OutputMode  mode )

inline

setName()

void Output::setName ( const QString &  name, const QString  tableName  )

inlineprotected

settings()

const XmlHelper & Output::settings ( ) const

inlineprotected

access XML settings (see class description)

setup()

void Output::setup ( )

virtual

setup() is called during project setup and can be ovveridden for specific setup

Reimplemented in ABE::ABEStandOut, ABE::ABEStandDetailsOut, ABE::ABEStandRemovalOut, ABE::UnitOut, BITE::BiteOutput, BITE::BiteCellOutput, CarbonFlowOut, CarbonOut, DevStageOut, DynamicStandOut, EcoVizOut, LandscapeOut, LandscapeRemovedOut, ManagementOut, ProductionOut, SaplingOut, SaplingDetailsOut, SoilInputOut, StandDeadOut, StandOut, SVDGPPOut, SVDStateOut, SVDUniqueStateOut, SVDIndicatorOut, TreeOut, TreeRemovedOut, WaterOut, BarkBeetleOut, FireOut, and WindOut.

singleThreadedWriteRow()

void Output::singleThreadedWriteRow ( )

protected

writeRow() protected by a mutex (if there is a chance that two outputs write at the same time)

tableName()

const QString Output::tableName ( ) const

inline

internal output name (no spaces allowed)

truncateTable()

void Output::truncateTable ( )

protected

delete all data from the table

wikiFormat()

QString Output::wikiFormat

(

)

const

return output description in a (tiki)-wiki format

writeRow()

void Output::writeRow ( )

protected

saves the current row/line of data to database/file. Must be called for each row.

---

The documentation for this class was generated from the following files:

• C:/dev/iland/src/output/output.h
• C:/dev/iland/src/output/output.cpp
